Name specification

Performance and characteristics:
1. won the EU CE certification.
2. set the level switch, the card liquid level abnormal message takes advantage of the output.
3. a motor self protection device is provided to prevent overheating and overloading.
4. release pressure release function can protect the pump and pipeline to reduce damage.
5. panel indicator can display the moving bear [YET-C1] of the oil injection machine.
6. the pressure switch can be selected freely according to the requirements of the customer (YET-C1P1).
7. has a "RES" key, which can be forced to lubricate.
The longest lubrication time of 8. is <2min, and the shortest interval time is >3min.

Scope of application
The YET type machine is suitable for the centralized lubrication system of machine tools, plastics, textile, light industry, printing and conveyor.

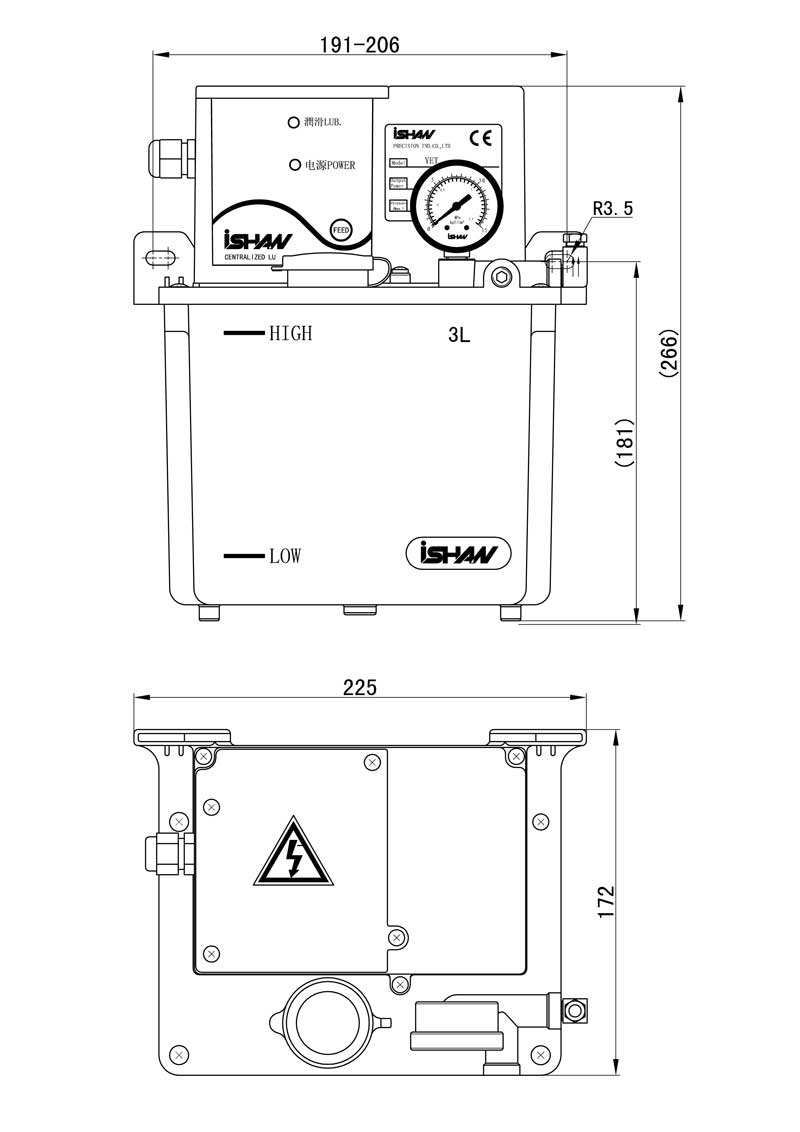

Appearance size diagram

Type and technical parameters:

Project Type

Product No.

Single phase voltage (VAC)

Power (W)

Abnormal output connection capacity (A)

Lubrication time

Interval time

Spit out the caliber

Maximum spitting pressure (kgf/cm²)

The amount of spitting (cc/min)

Pressure switch (kgf/cm²)

Liquid level switch

Oil tank capacity (L)

Weight (kg)

YET-C1

111101

110 or 220

100

Liquid level switch 0.3

The PLC control system must be connected to the

The PLC control system must be connected to the

4

7

200

No

Upper power (oil conduction)

2L (resin)

2.6

3L (resin)

2.9

YET-C1P1

pressure switch 3

2.1↑ off

4L (resin)

3.2

4L(alufer)

3.6

Wiring diagram Hydraulic schematic diagram
