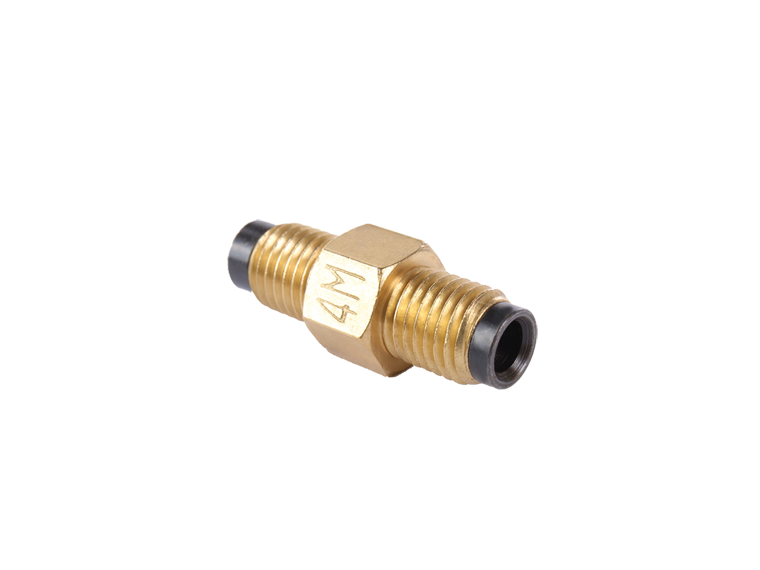

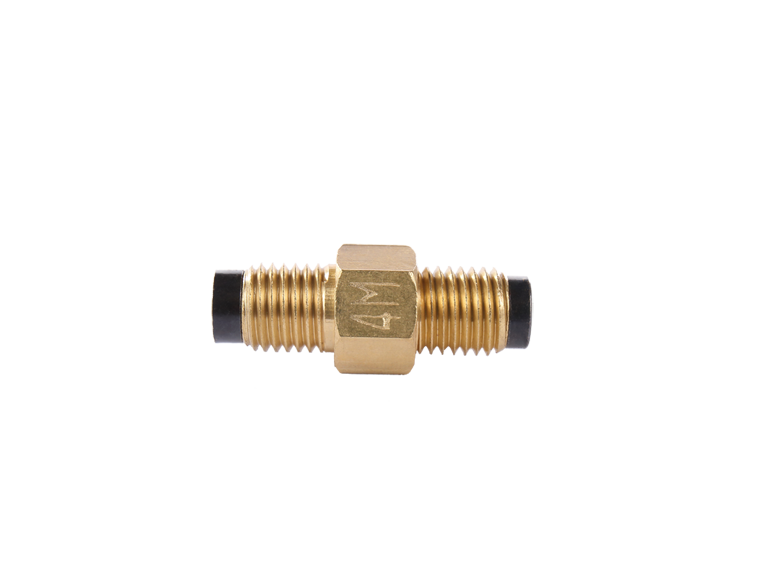

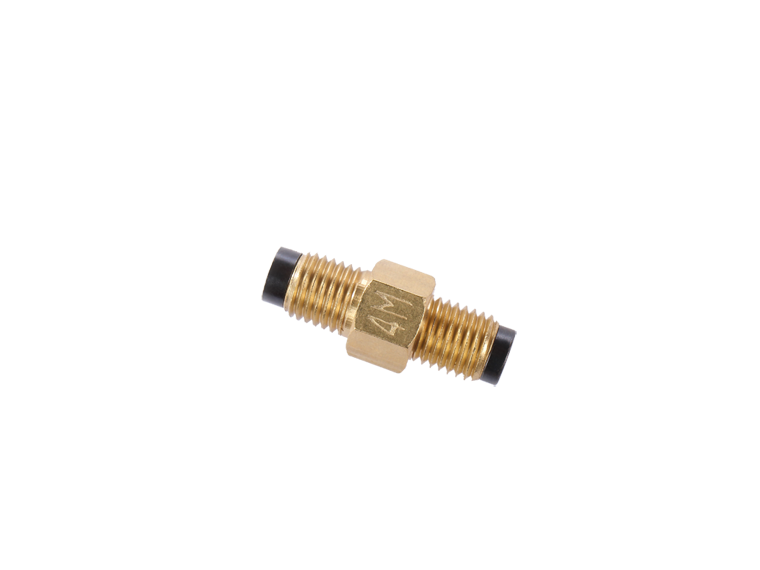

DSM cone free

Effectiveness and characteristics:
1. The reverse valve can prevent the reflux of lubricating oil.
2 oil oil pressure temperature and change.
3 low cost good quality and low price.

Model:DSM cone free

Category:Proportional joint

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Effectiveness and characteristics:
1. The reverse valve can prevent the reflux of lubricating oil.
2, oil, oil, pressure, temperature and change.
3, low cost, good quality and low price.

Application:
1. It is suitable for low pressure lubrication system.
2 with the use of resistance type oil injection machine.
3. Use pressure: 2~20kgf/cm².
4.Oil viscosity (40 C): 20~500cSt.
5 Flow ratio: form each plus one number, and the flow rate is multiplied by multiple.
6 Weight: 11g.

Appearance size diagram


Type and technical parameters:
  Project
Type
Straight rod proportional joint
IN M8X1.0 M8X1.0
OUT M8X1.0 PT1/8
Flow ratio Flow form DSM-M DCM-M
1 00 DSM-00M DCM-00M
2 0 DSM-0M DCM-0M
4 1 DSM-1M DCM-1M
8 2 DSM-2M DCM-2M
16 3 DSM-3M DCM-3M
32 4 DSM-4M DCM-4M
64 5 DSM-5M DCM-5M
