PRODUCT

YGL-GS

Performance and characteristics:
1. The batch and lubrication time of the oil pump is controlled by the PLC system on the mechanical equipment
2. the deceleration motor rotates through the crank to drive the piston group to mov

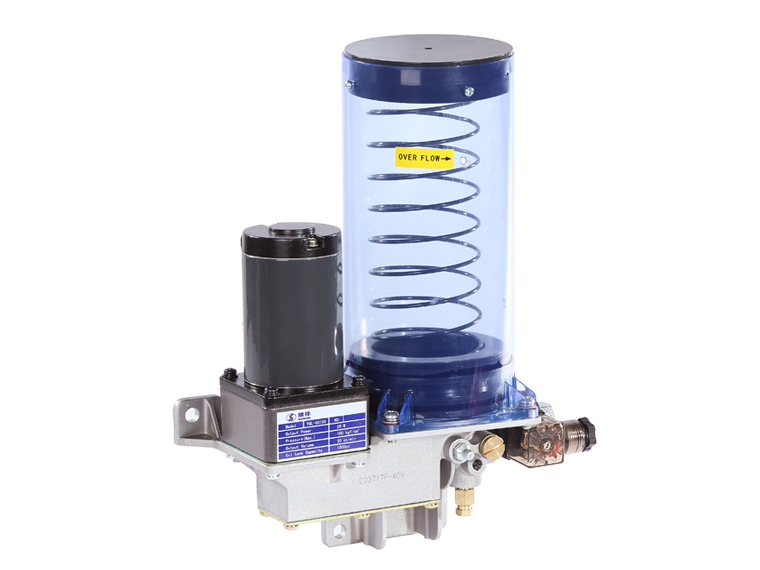

Model:YGL-GS15

Category:YGL-GS volumetric oil injection machine

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Performance and characteristics:
1. The batch and lubrication time of the oil pump is controlled by the PLC system on the mechanical equipment
2. the deceleration motor rotates through the crank to drive the piston group to move in the pump body to complete the oil absorption and exhaust the reciprocating movement.
3. A new type of oil suppressor block is used to make oil clean and prevent rollover.
4. The constant pressure function of the pressure relief valve can ensure the service life.
5. The pressure relief of the solenoid valve is provided to ensure the reliability of the pressure relief.
6. without the need for refueling auxiliary equipment direct replacement of canned oil convenient and quick.
7. can be combined with YGL-L manual refueling gun to supplement oil convenient and rapid refueling (need to add special fast inserts)
8. Apply lubricating oil degree: 000#~0#.

Scope of application:
The YGL-GS type machine is suitable for medium and small mechanical equipment, such as engineering machinery, textile, printing, machine tools and other machinery.

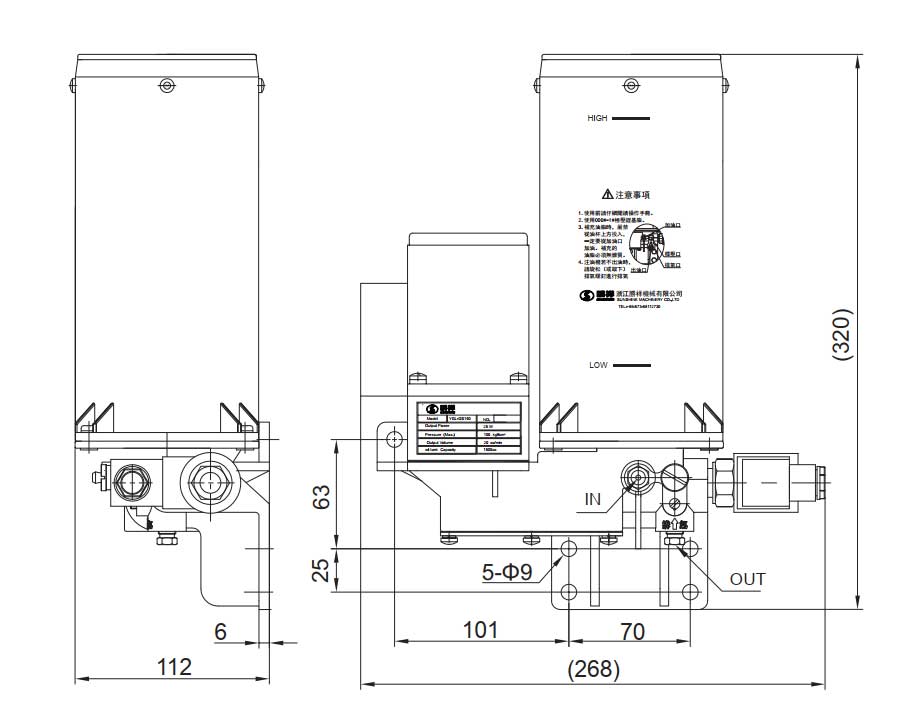

Appearance size


Type and technical parameters:
  project
type
Product No. Voltage
(V)
Power
(W)
Lubrication time Interval time Spit out the caliber Maximum spitting pressure
(kgf/cm²)
The amount of spitting
(cc/min)
Liquid level switch Pressure gauge Oil capacity
(CC)
Weight
(kg)
YGL-GS08 122116 AC220
or
DC24
25 The PLC control system must be connected to the
Ø6
or
Ø8
80 20 Must be selected with 800 3.8
YGL-GS15 1500
YGL-GS04 No Must be selected with 400 (butter bar) 2.5
YGL-GS07 700 (butter bar)

Wiring diagram



Hydraulic schematic diagram
