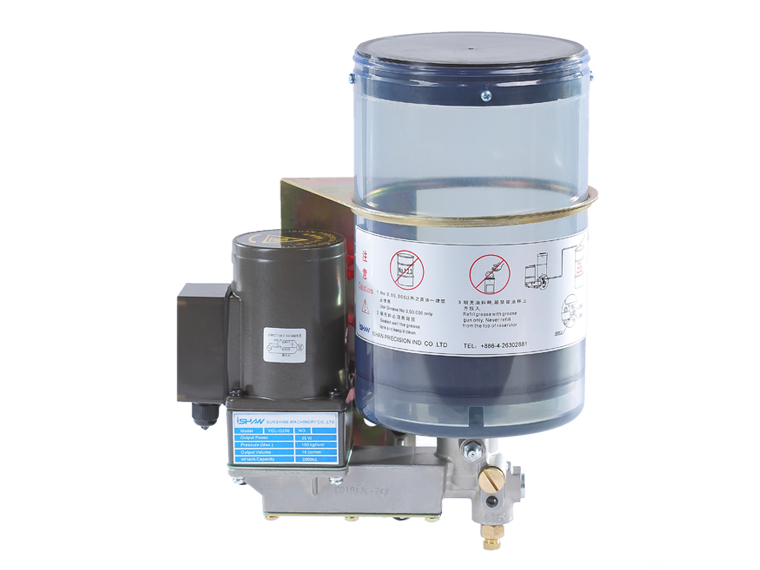

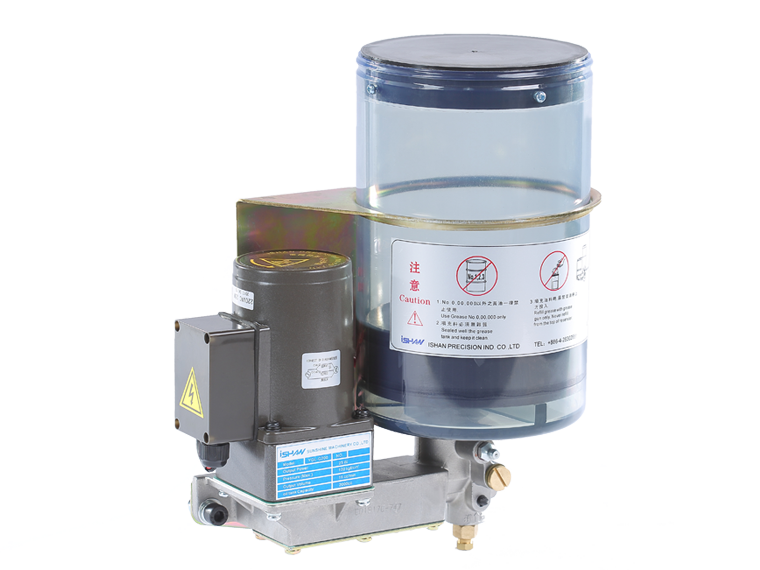

YGL-G20

Performance and characteristics:
1. The PLC control system can be connected to control the interval and lubrication time of the oil pump.
2. the motor reducer is driven by the crank to drive the piston group in the pump body.

Model:YGL-G

Category:YGL-G progressive oil injection machine

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Performance and characteristics:
1. The PLC control system can be connected to control the interval and lubrication time of the oil pump.
2. the motor reducer is driven by the crank to drive the piston group in the pump body.
Finish the oil absorption and exhaust the reciprocating movement.
3. A new type of oil suppressor block is used to clean the oil and prevent the rollover.
4. The constant pressure function of the pressure relief valve can ensure the service life.
5. There is a plunger type one-way valve, which can prevent the reverse flow of oil.
6. 1200cc/2000cc has the pressure type choice.

Scope of application:
The YGL-G type electric injector is widely used in engineering, transportation, machine tool, textile, light industry, forging and other machinery.

Appearance size diagram:

Type and technical parameters:
  Project
Type
Voltage (V) Power (W) Lubrication time Interval time Spit out the caliber Maximum spitting pressure (kgf/cm2) The amount of spitting (cc/min) Liquid level switch Pressure gauge Oil capacity (CC) Weight (kg)
YGL-G AC220
or
25 The PLC control system must be connected to the Ø 6 100 20 Must be selected with 800 3.0
DC24
or
Or 1200 3.7
Three phase 380 Ø 8 2000 4.3
