PRODUCT

YGL-T08

Performance and characteristics:
1. strengthen the type sealing device anti oil block does not turn the card in the cup.
2. the oil will not remain in the cup.
3. The oil outlet can be installed on the right or left side

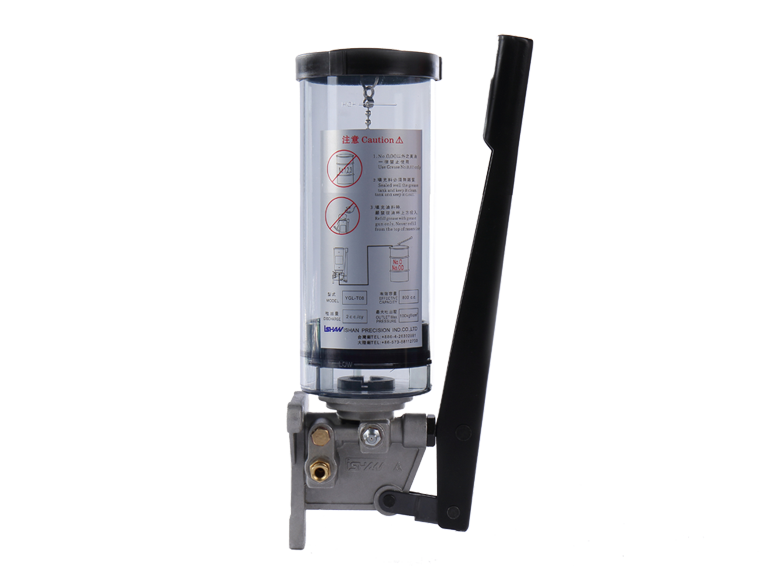

Model:YGL-T08

Category:YGL-T manual progressive injection machine

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

Performance and characteristics:
1. strengthen the type sealing device anti oil block does not turn the card in the cup.
2. the oil will not remain in the cup.
3. The oil outlet can be installed on the right or left side according to the installation of the pipeline.
4. Fill the butter with a manual or electric butter gun.

Scope of application:
The YGL-T type manual grease lubrication pump can be used for resistance system or progressive system. The pump is suitable for medium and small mechanical equipment, such as engineering machinery, textile, printing, machine tools and other machines.

Appearance size diagram

Type and technical parameters:
  项目
型式
The amount of spitting
(cc/cy)
Maximum spitting pressure
(kgf/cm²)
Spit out the caliber Oil capacity
(CC)
Weight
(kg)
YGL-T080S 1 100 Ø6 400(Butter bar) 2.3
YGL-T080 800 1.9
YGL-T120 1200 2.2
YGL-T200 2000 2.5
