Performance and characteristics:
1. the motor drive reducer the pump device cam drive plunger in the pump body for a straight line reciprocating movement in order to achieve oil absorption oil discharge process.
2. There are 5 independent pump unit units (5 oil outlets) and can be arbitrarily taken. (should be marked when ordered)
3. Each oil outlet has a safety valve to prevent the pressure overload of the unit of the pump unit.
4. The program controller can be built in and the external connection program controller can control the interval and lubrication time of the oil pump.
5. the progressive grease lubrication system can be formed according to the needs of the progressive distributor of DU and DP series.
6. with high level and low level switch when the level is too high or insufficient the signal can be output (to be selected).

Scope of application:

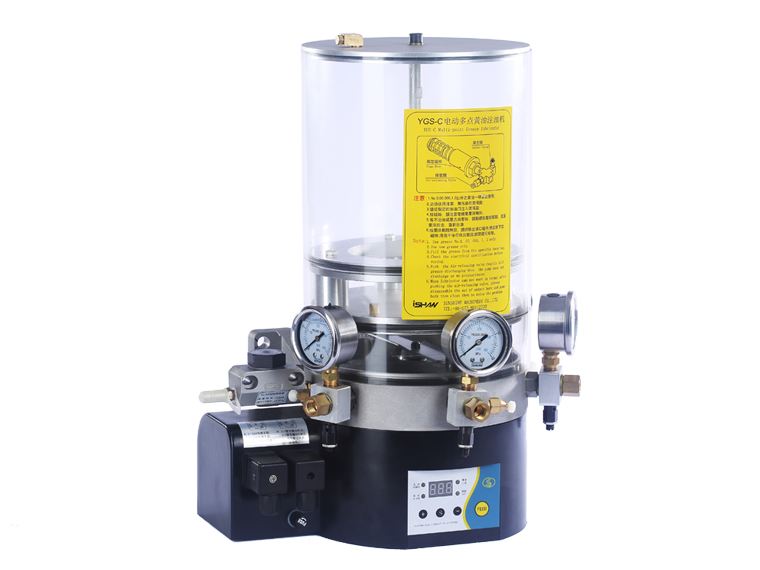

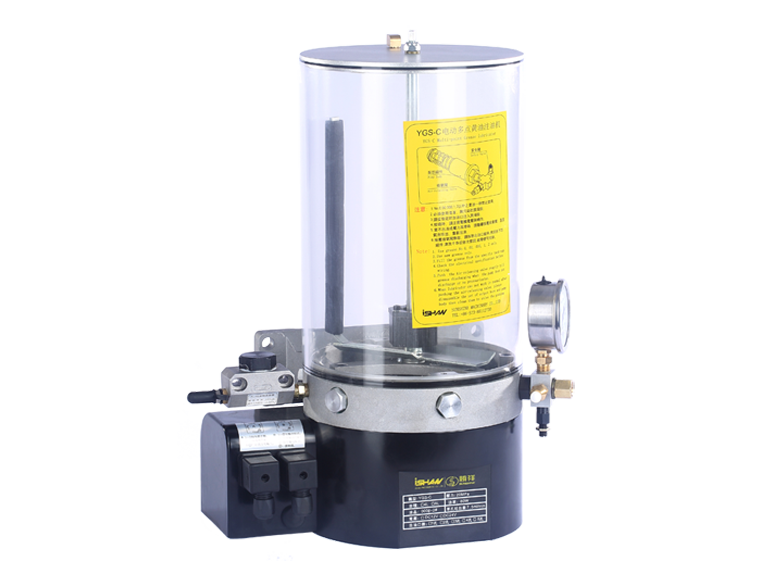

YGS-C multi point butter injection machine is widely used in engineering transportation machine tool textile light industry forging and other machinery.
