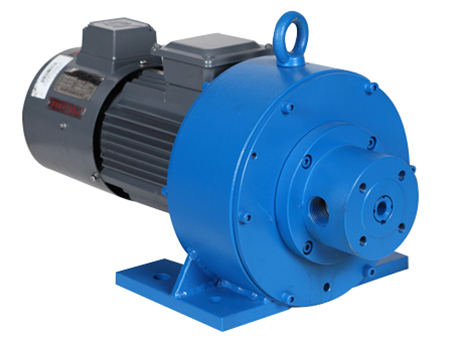

SX-1 series rotary jet pump

Model:SX-1Z

Category:SX-1Z Series

  • Description
  • Technical Parameter
  • Other Instructions
  • Ordering

The inlet pressure is less than 1.5Mpa.

Flow: 1~3m3/h

Lift: 30~180m

Speed range: 5000rpm

Maximum efficiency: 50%

Matching power: 1.5~3kw

Size: 622*300*361 (L*W*H)

(size for reference only, different sizes of the motor will be different)

Pump (containing motor) weight: 68.5kg

(the weight is for reference only, the different weight of the motor will be different)


Import: G1 "pipe thread"

Exit matching flange: DN25


Overflow component material selection


Please contact us for the specific appearance and size of the installation

Name SX-1 series rotary jet pump
Model SX-1Z
Description The inlet pressure is less than 1.5Mpa.

Flow: 1~3m3/h

Lift: 30~180m

Speed range: 5000rpm

Maximum efficiency: 50%

Matching power: 1.5~3kw

Size: 622*300*361 (L*W*H)

(size for reference only, different sizes of the motor will be different)

Pump (containing motor) weight: 68.5kg

(the weight is for reference only, the different weight of the motor will be different)


Import: G1 "pipe thread"

Exit matching flange: DN25


Overflow component material selection


Please contact us for the specific appearance and size of the installation
Import: G1 "pipe thread"

Exit matching flange: DN25


Overflow component material selection


Please contact us for the specific appearance and size of the installation
1、 The supply cycle indicates that the supply cycle of the whole pump is 2 to 3 months, and the spare parts are about 1 months, due to the difference of the specific working conditions (the material and electric motor of the pump will change due to the change of working conditions).
2、 Medium condition: when ordering products, please provide detailed medium parameters (composition and content, temperature, specific gravity, viscosity, etc.).
